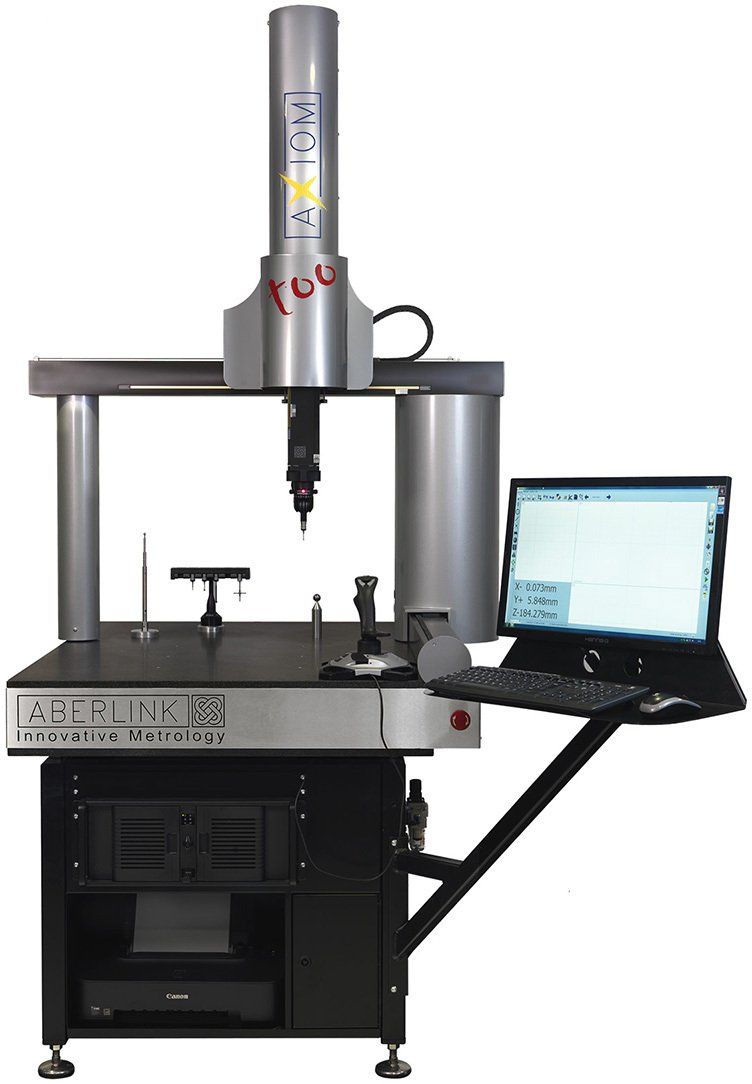

ABERLINK CNC CMM

  • Automatic measurement routines
  • Automatic feature recognition
  • 2D and 3D inspection
  • Geometric feature inspection
  • Free form curve inspection
  • DXF data import/export
  • STEP and IGES export
  • Engineering drawing GD&T report
  • Simple PASS/FAIL report
  • Batch summary report
  • Tabulated reports
  • Graphical fly-out labels
  • Drag & drop reporting
  • Real-time SPC

BATY PROFILE PROJECTOR

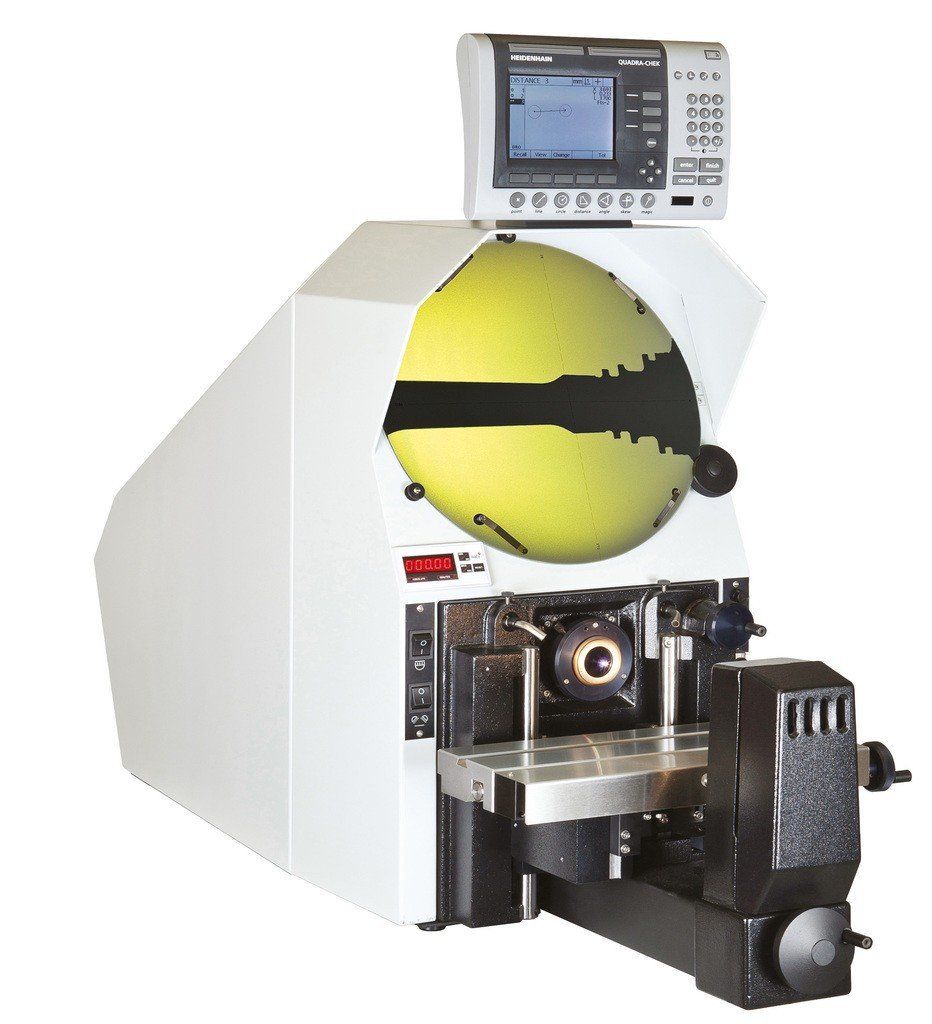

The Baty R14 bench mount profile projector with its 340mm screen combines high accuracy non-contact measurement and inspection with a large 175mm x 100mm measuring range.

Features
• 340mm (14") screen with 90º crosslines and chart clips
• Profile illumination with halogen lamp and green filter
• Lens magnification choice: x10, x20, x25, x50 and x100
• Surface illumination (fibre optic)
• Helix adjustment of light source ± 7º for accurate thread form projection
• Workstage with machined slot for holding accessories
• Workstage measuring range of 175mm (7") x 100mm (4")
• Digital angle measurement to 1 minute
